Product Description (L20 3.0 Boost)
Product Description (L20 3.0 Pro)
Specs & Size
SPECS :

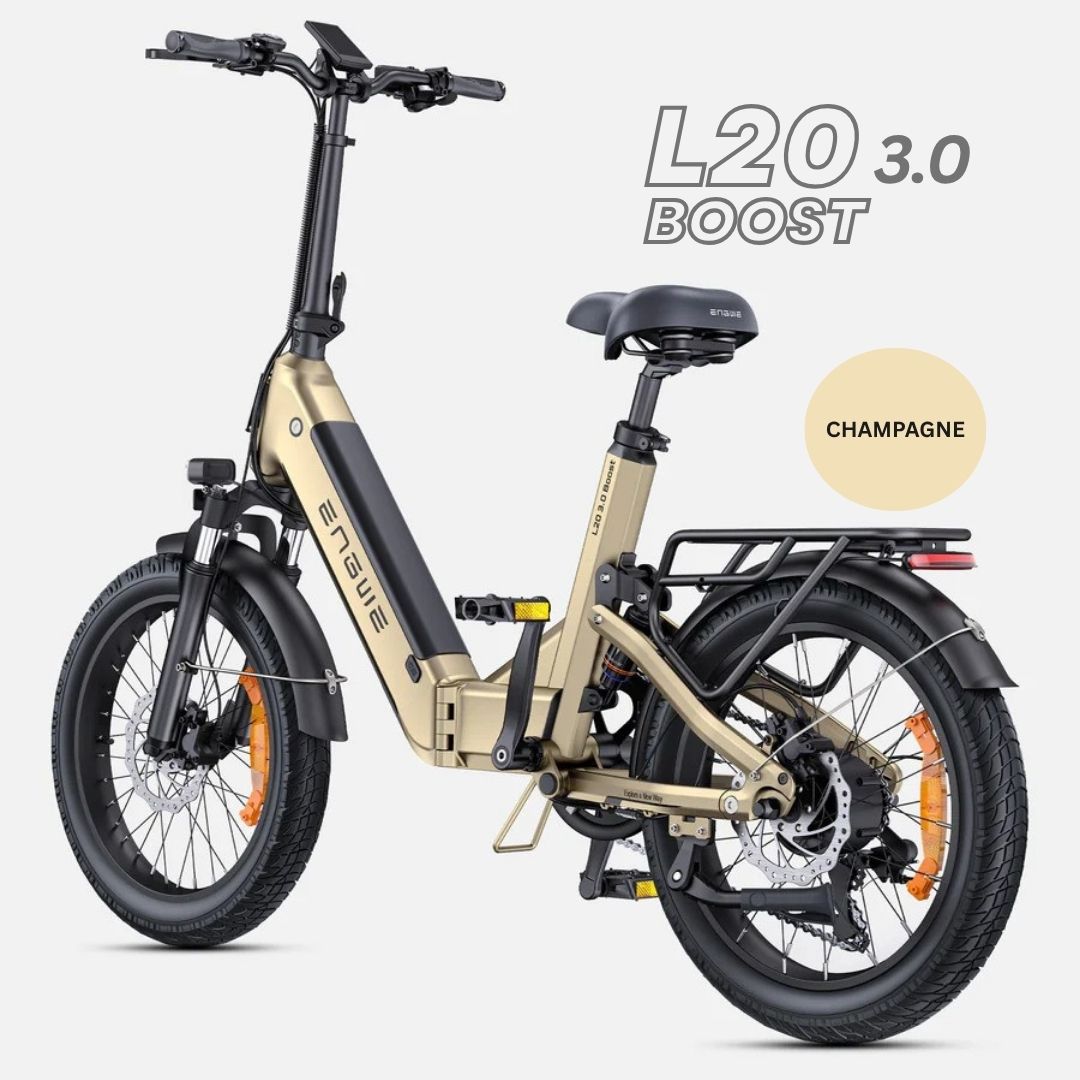

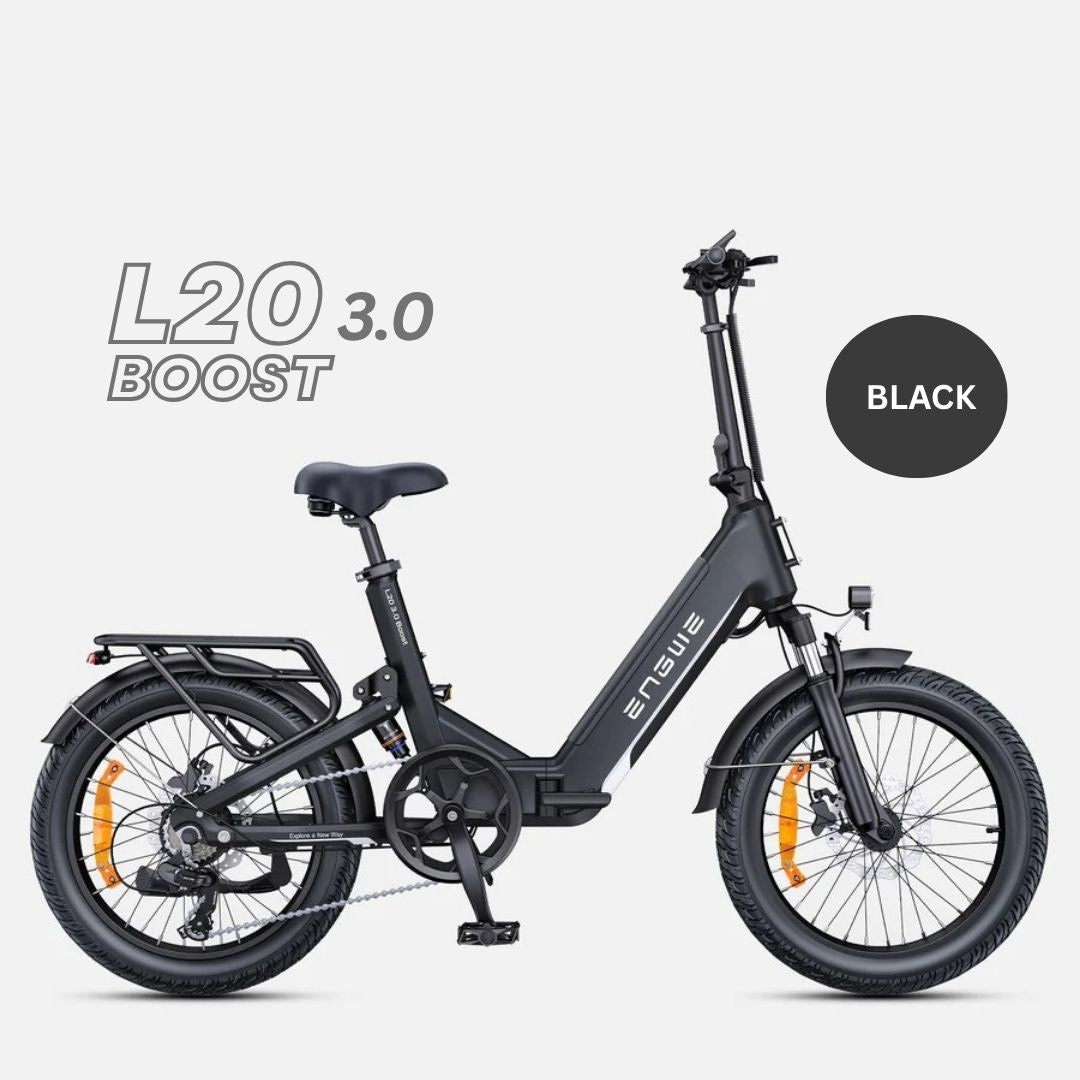

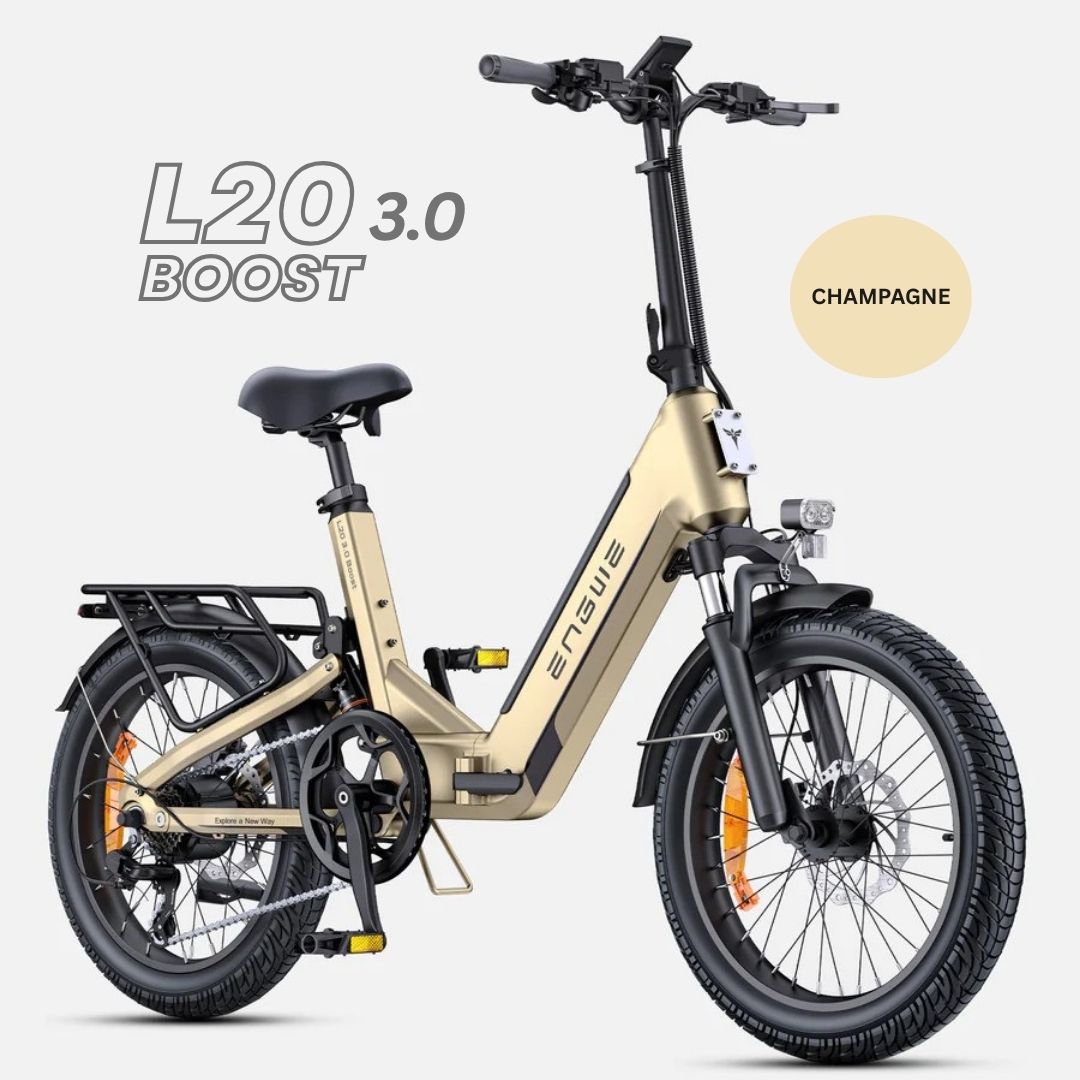

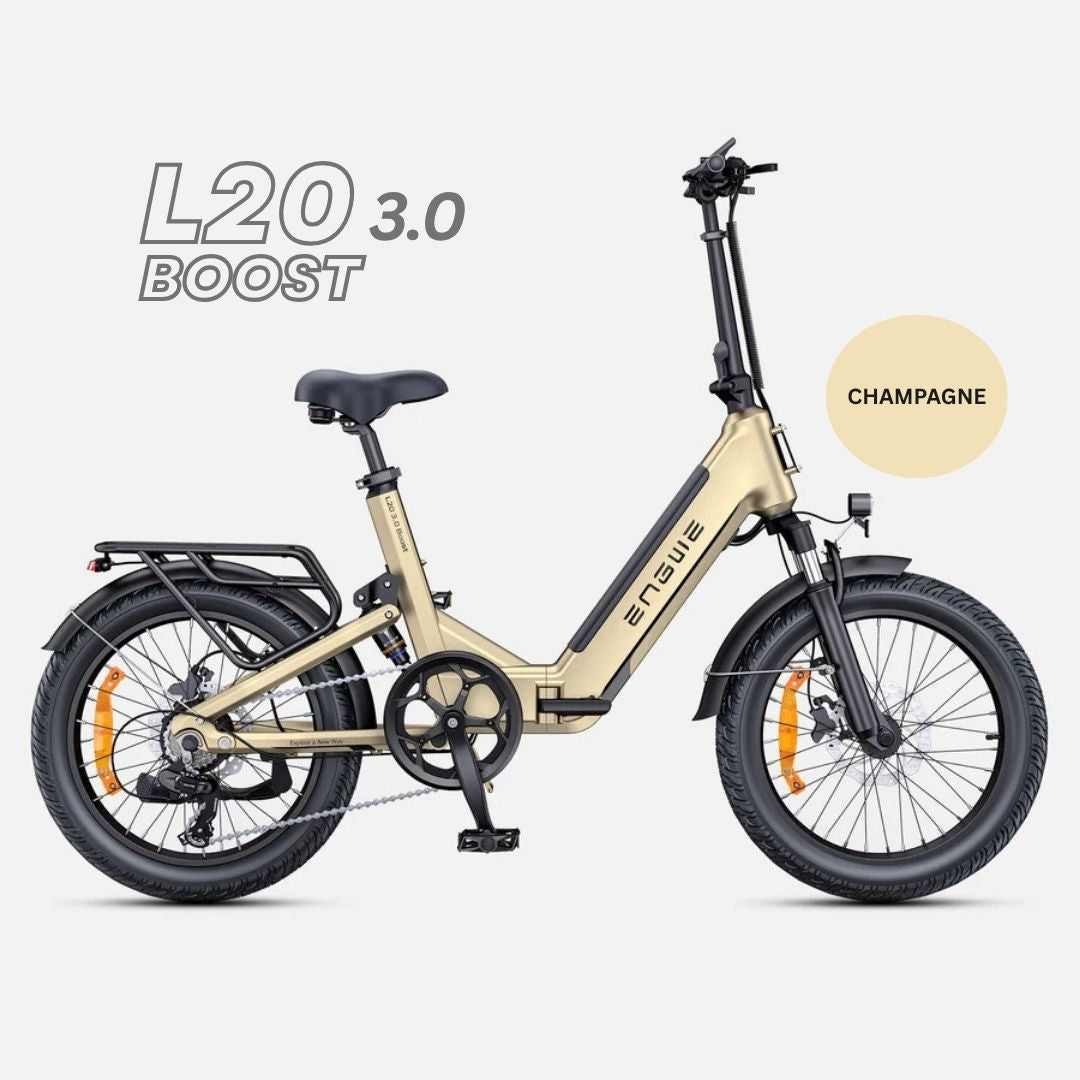

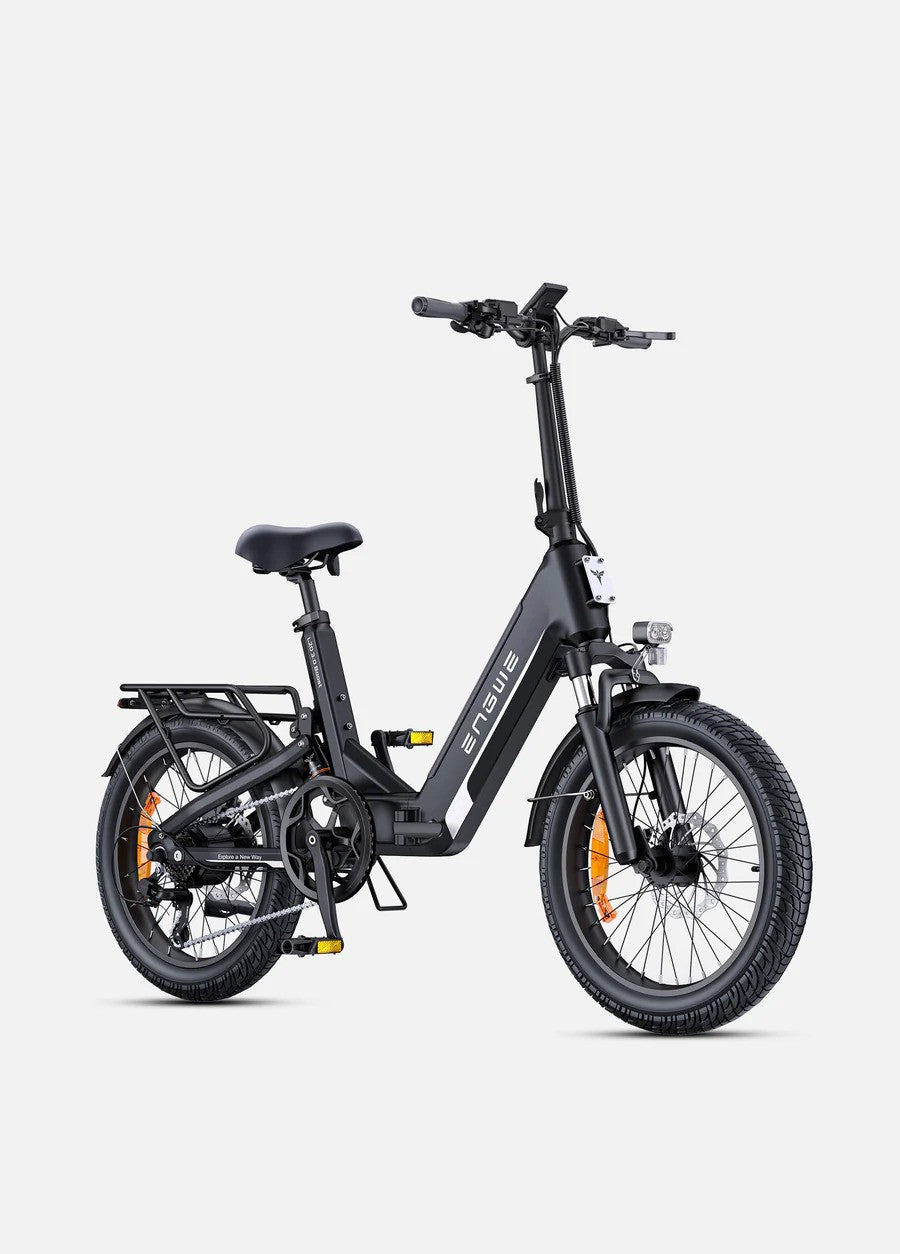

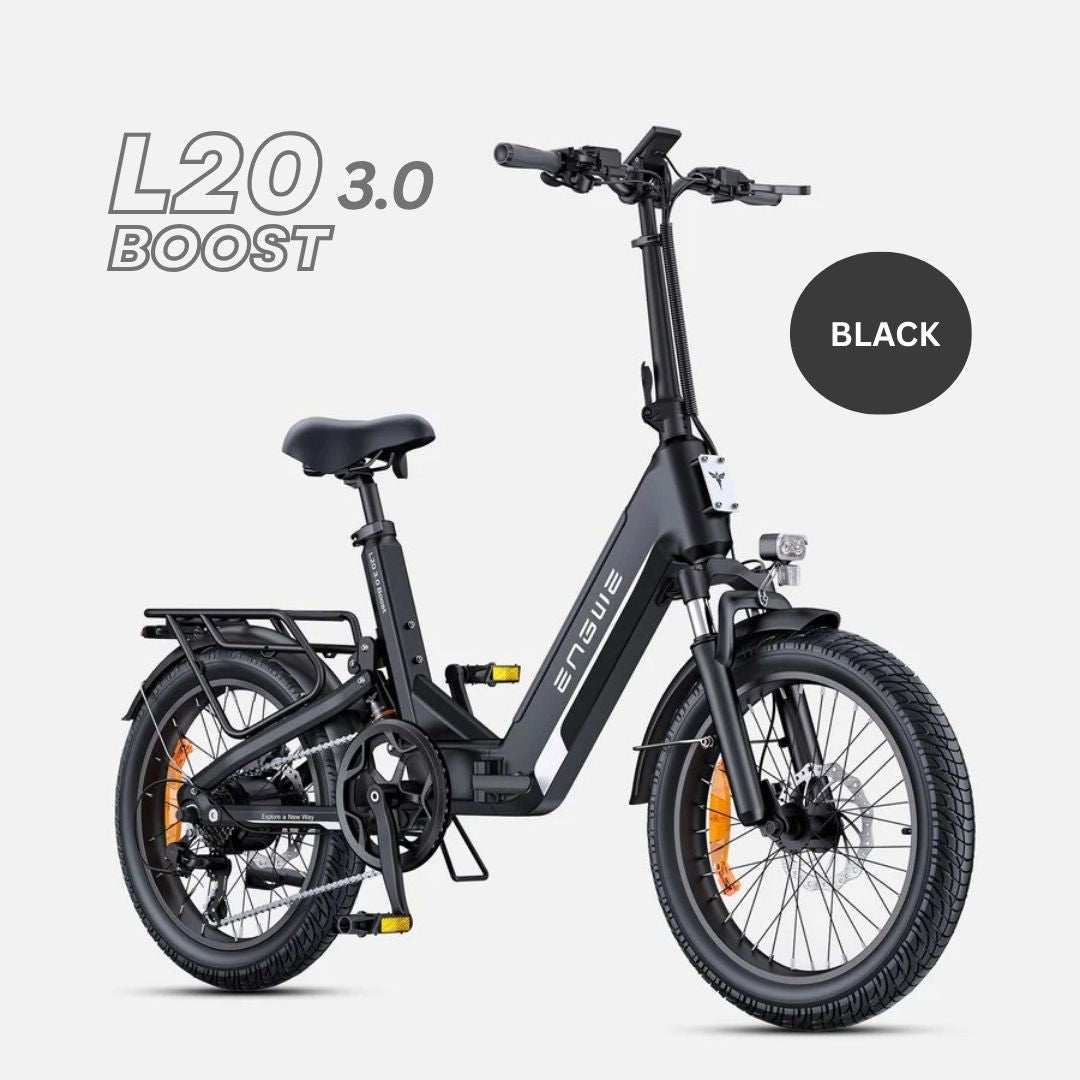

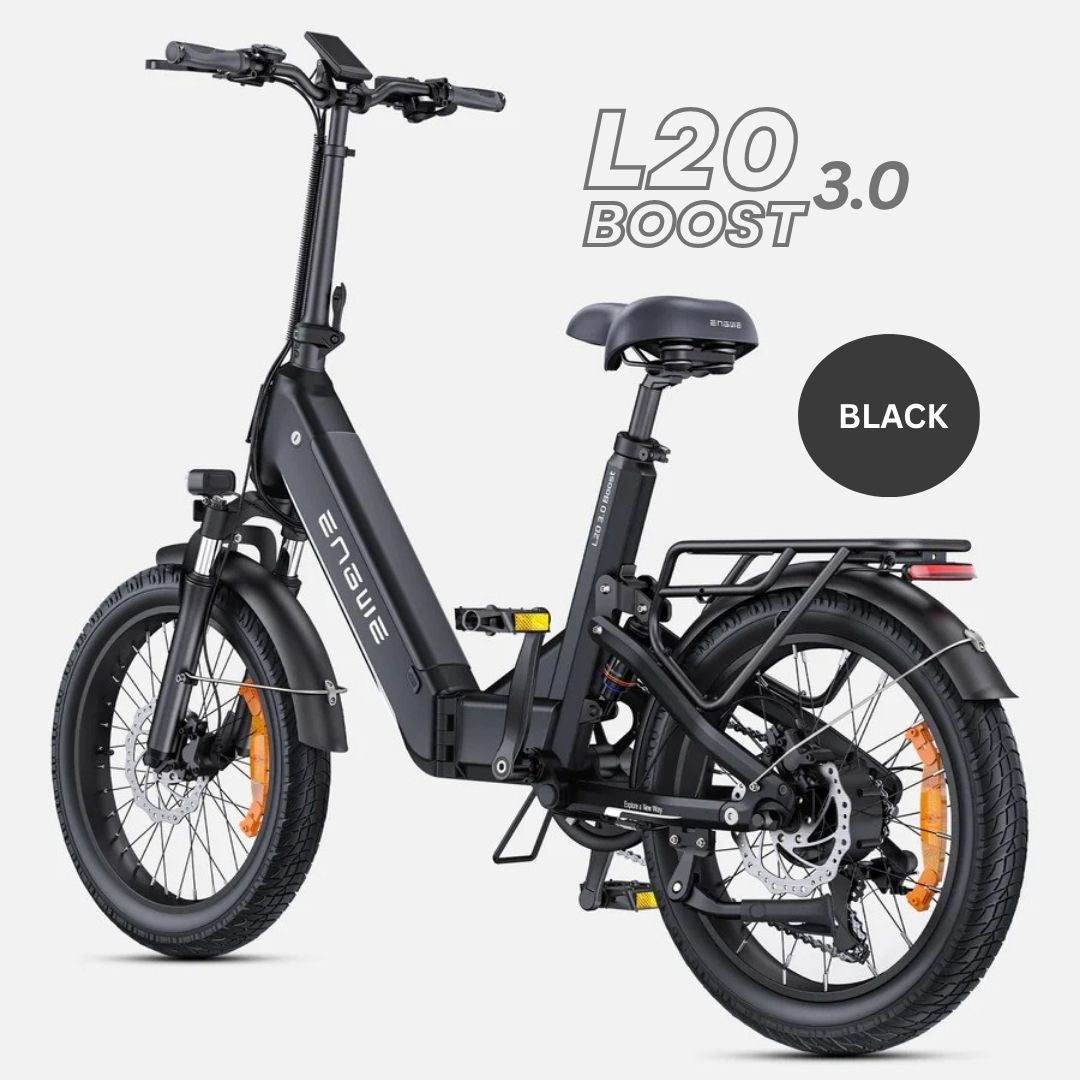

L20 3.0 BOOST
| General Info | |
| Model | L20 3.0 Boost |
| Max Load Capacity | 150kg (330 lbs) |
| Ride Height | 5'1" - 6'3" (155cm - 190cm) |
| Certification | CE (EN15194) |
| Pedal Assist | 5 Levels |
| Fold | Yes |
| Lab Tested Range | 135 km(Fully Charged) |
| Real-World Range | 120 km(PAS 1) 100 km(PAS 3) 85 km(PAS 5) |
| Waterproof Ratings | IPX7(Waterproof Wiring) IPX6(Display & Lights) IPX5(Motor & Controller) IPX4(Battery Box) |
| Terrain | Tarmac Roads & Bicycle Routes Gravel-Paved Paths Sandy Beaches & Grass Country Roads & Paved Trails |
| Bike Weight | 33.2 kg(73.2 lbs) |
| Gross Weight | Approx. 42kg(92.6 lbs) |
| Frameset | |
| Frame Material | 6061 Aluminum Alloy, Internal Battery, Step-Through Design |
| Frame Style | Compact, Full Suspension |
| Fork | Hydraulic, Adjustable Lockout, Aluminum & Iron |
| Rear Suspension | 30mm Travel |
| Wheel Set | |
| Tires | 20" × 3.0" Urban Hybrid Tires |
| Puncture Protection | 3mm Anti-Puncture Layer |
| Wheels | 20-inch, 12-gauge Spokes, 36-hole, Double-Wall Aluminum, Black |
| E-Bike System | |
| Motor | 48V Hub Motor |
| Max Torque | 75Nm |
| Assist System | Torque Sensor |
| Battery | 48V 13.5Ah (648Wh), 21700 Cells, with BMS |
| Display | 3.5" LED Color Display, ENGWE-Designed, Mid-Position, with Bluetooth |
| ENGWE App | App Control Available |
| Charger | 54.6V 8A Output |
| Front Light | 30 Lux with Integrated E-Horn |
| Rear Light | Automatically brightens When Braking or Shaking |
| Brakes | |
| Brake Type | Hydraulic, Dual-Piston |
| Disc Rotor | 180mm Front & Rear |
| Drivetrain | |
| Chain | C8R8 Anti-Rust, 116 Links |
| Chainring | 52T |
| Crank | 170mm |
| Rear Derailleur | Shimano Tourney RD-TY300, 7-Speed |
| Shifter | Shimano SL-M315-7R |
| Cassette | 7-Speed, 14T-28T |
| Pedals | Boron Steel, Non-Foldable |
| Cockpit | |
| Saddle | ENGWE Soft Saddle |
| Seat Post | 10-Level Adjustable |
| Handlebars | 680mm Width |
| Stem | Foldable |
| Seat Clamp | Quick-Release |

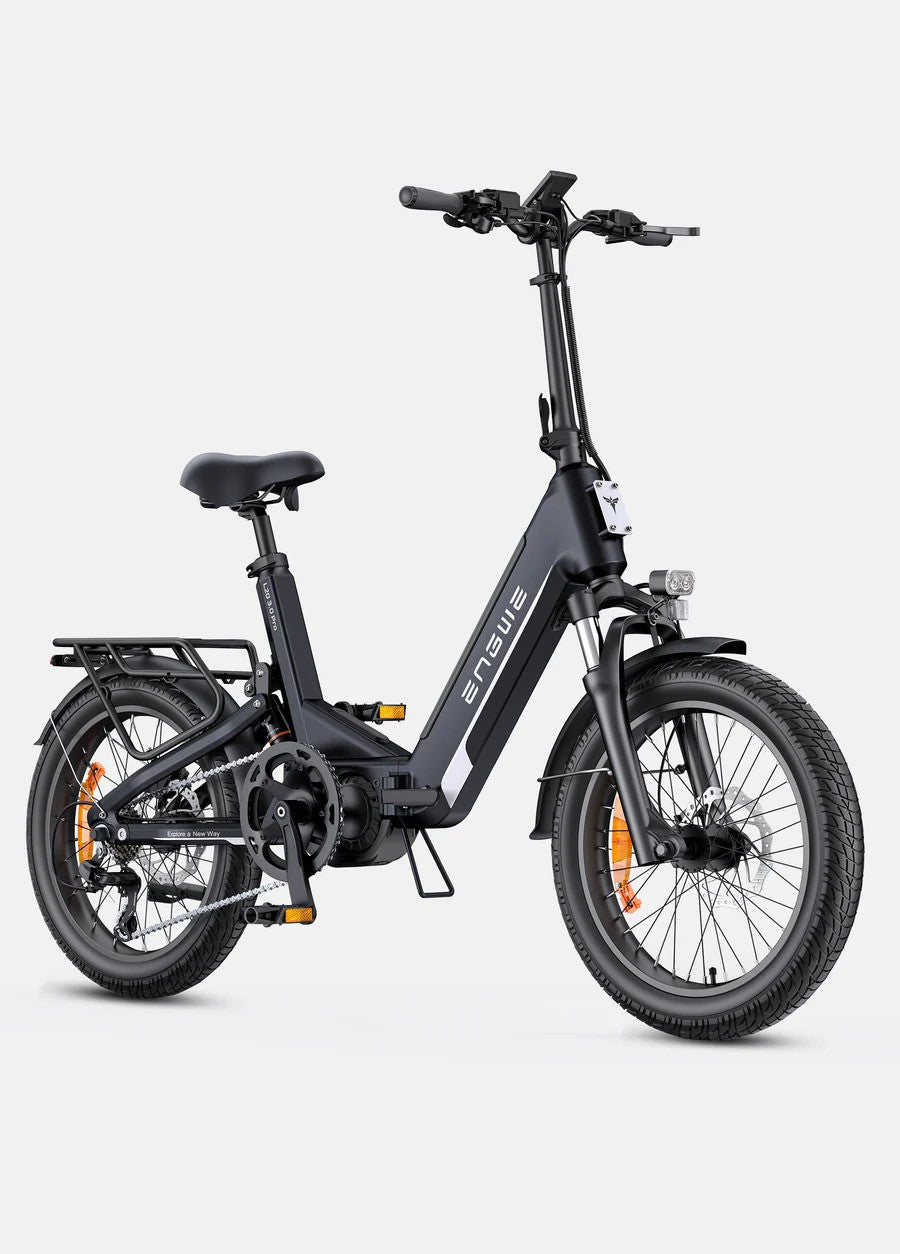

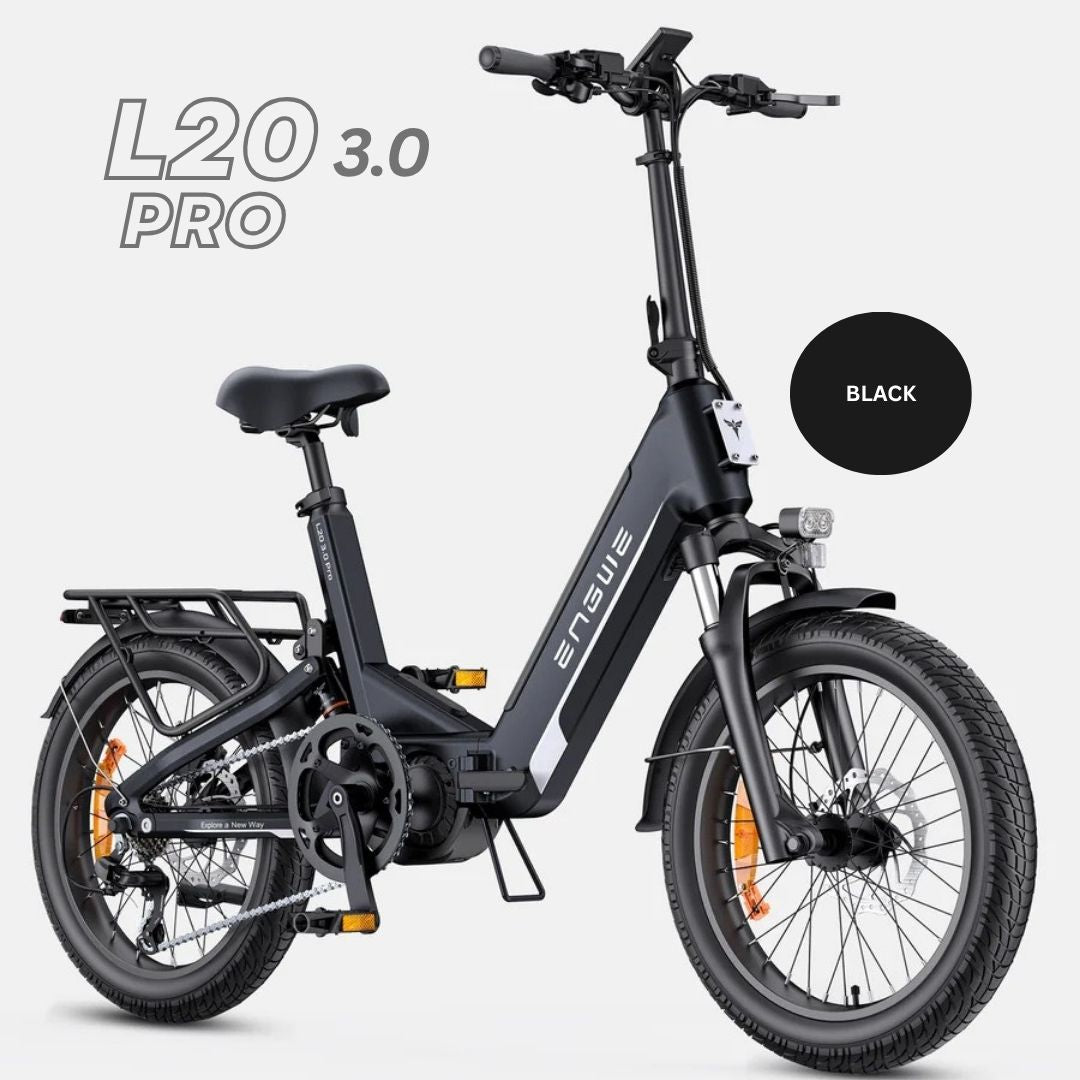

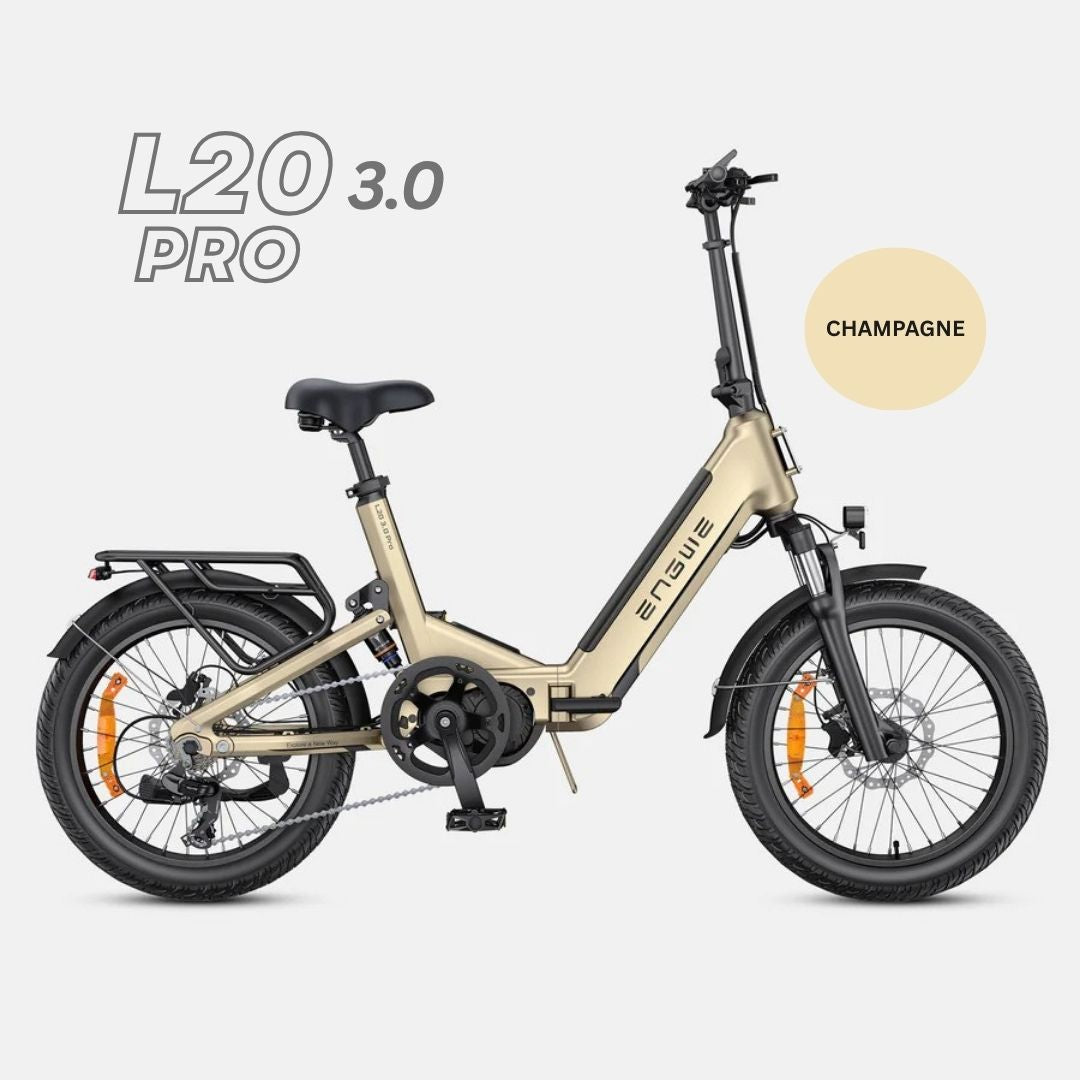

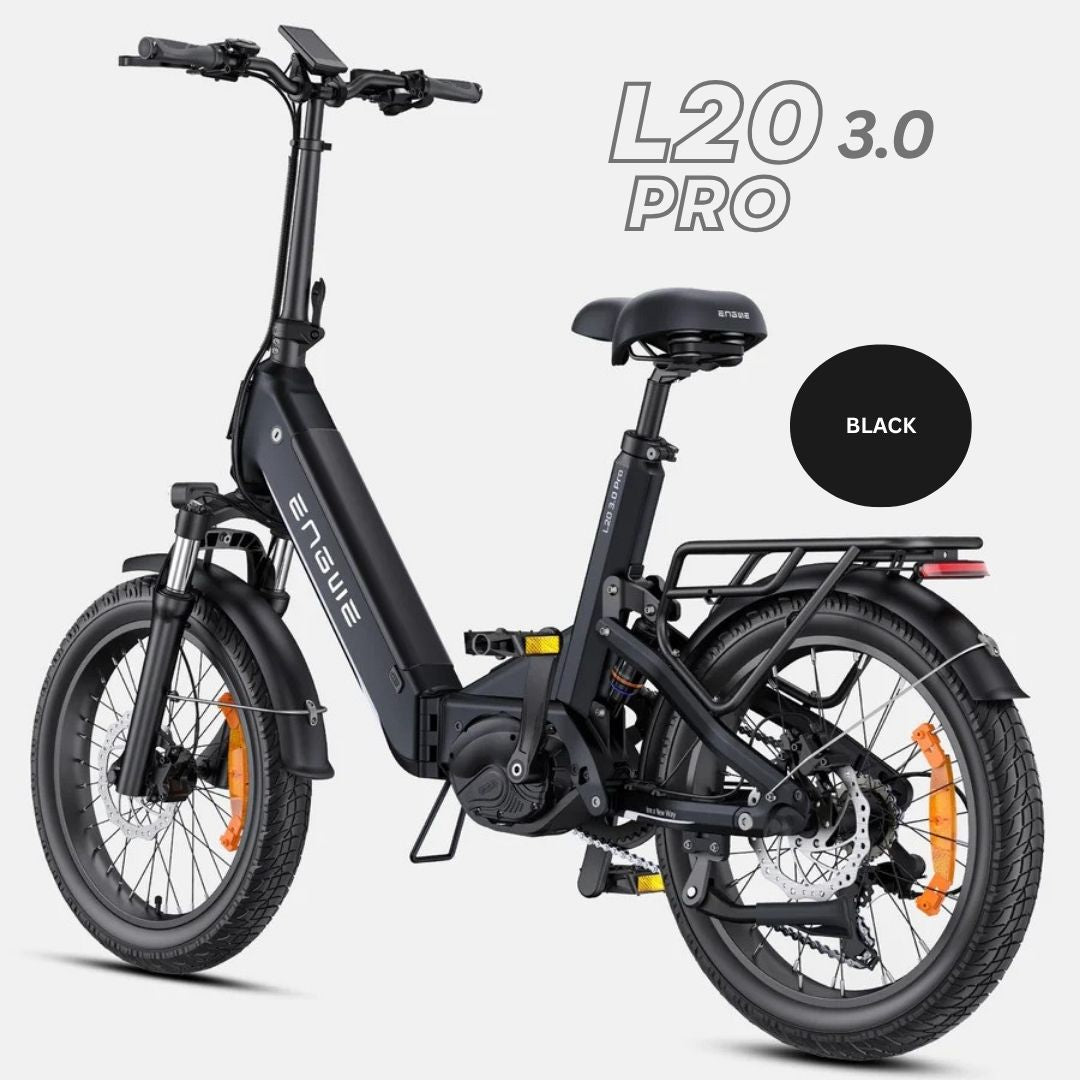

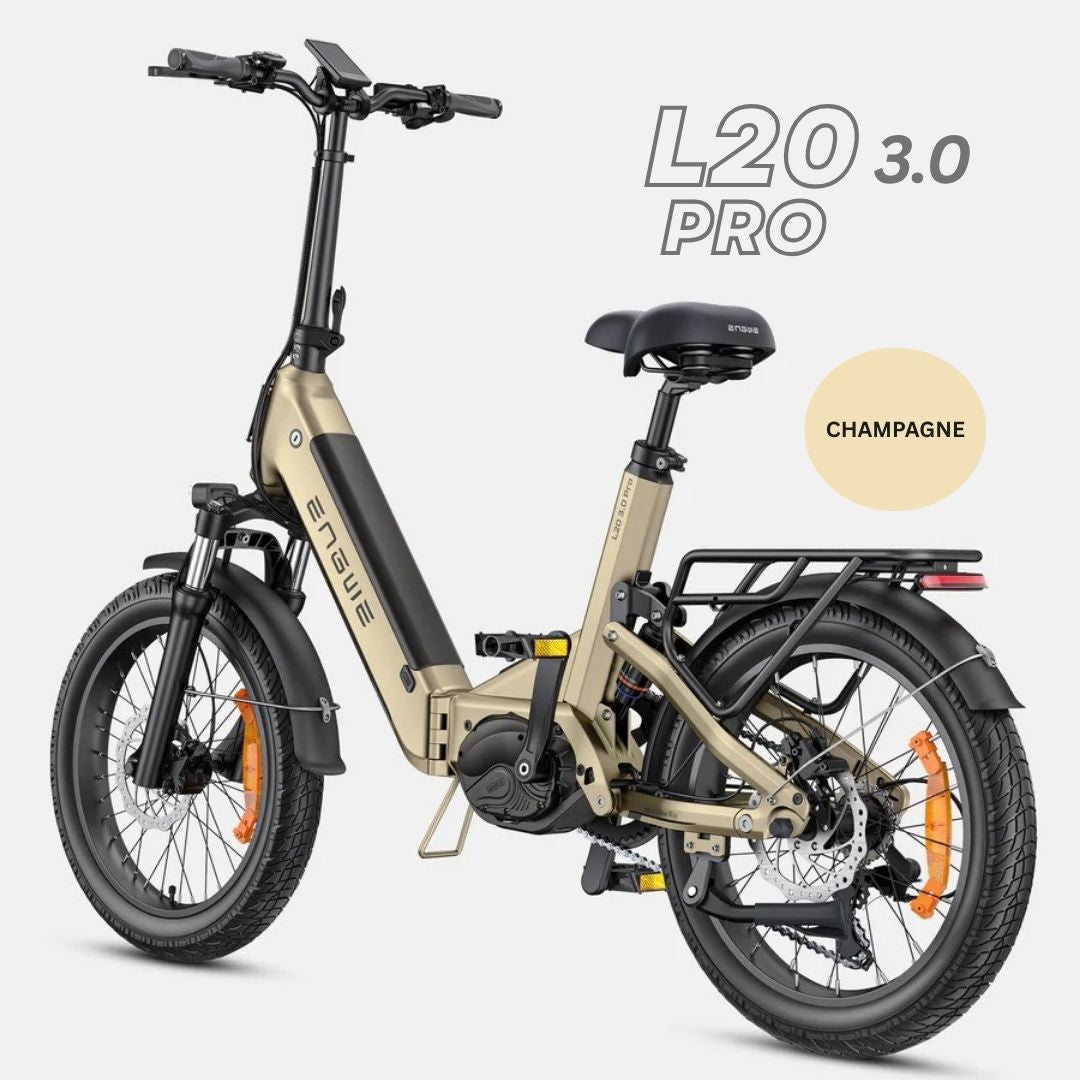

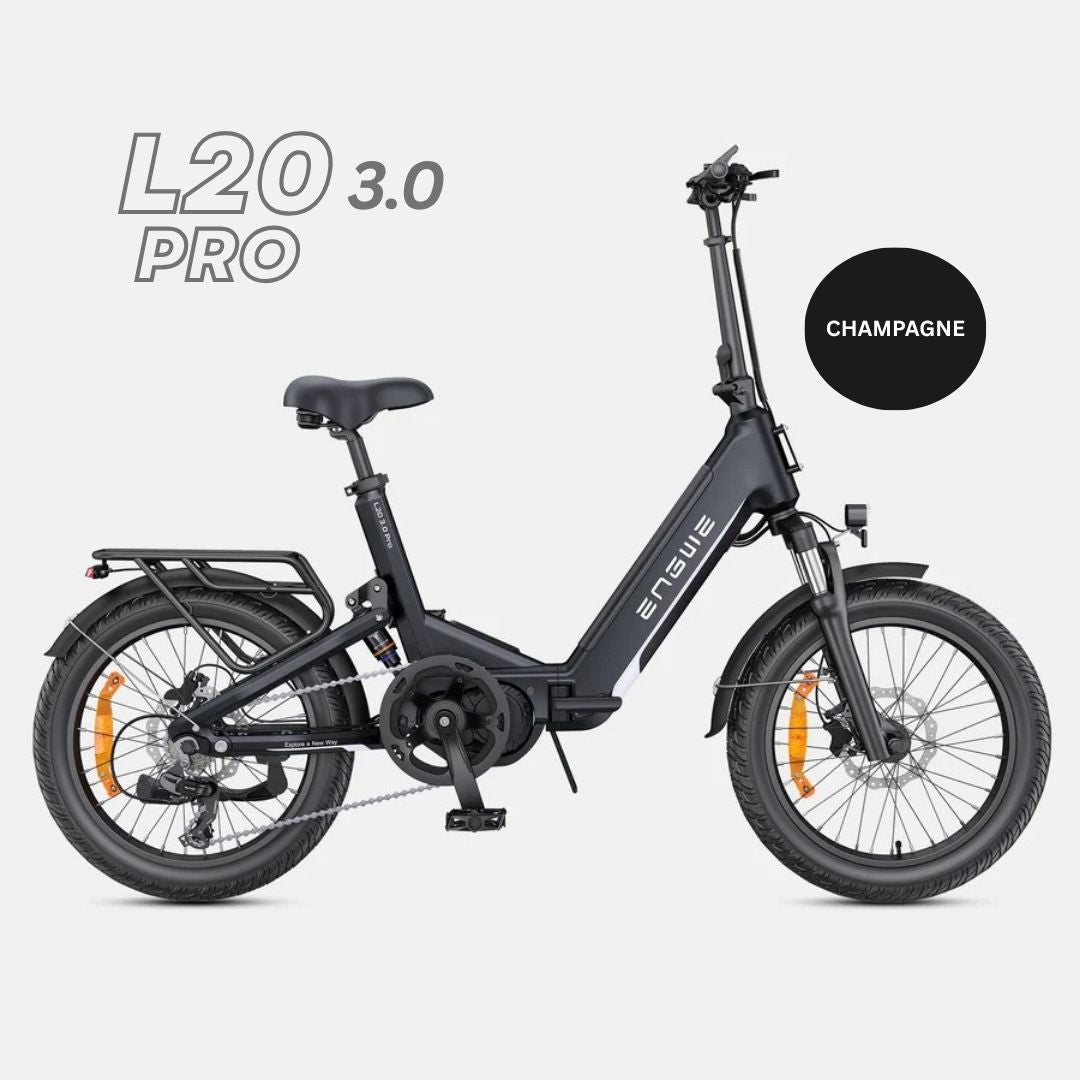

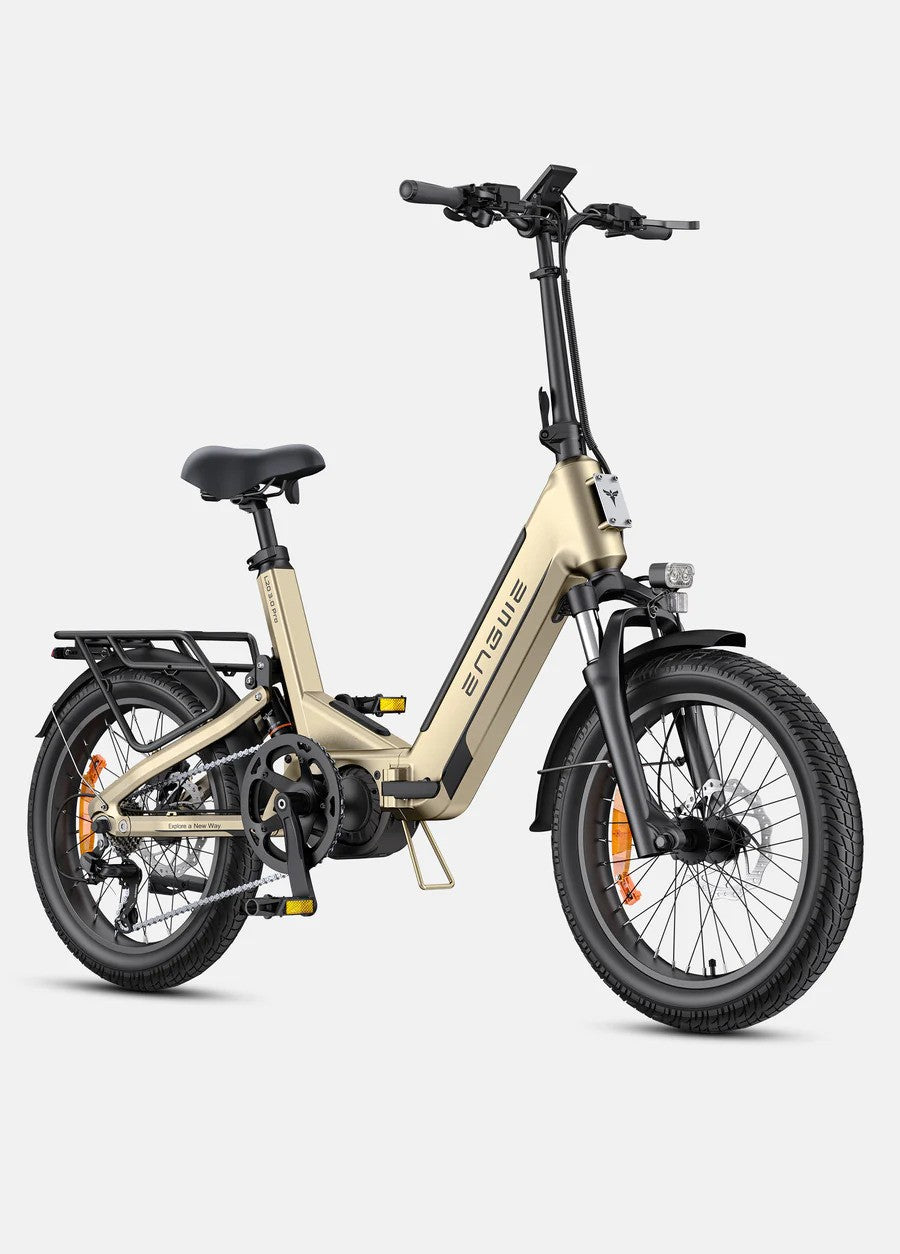

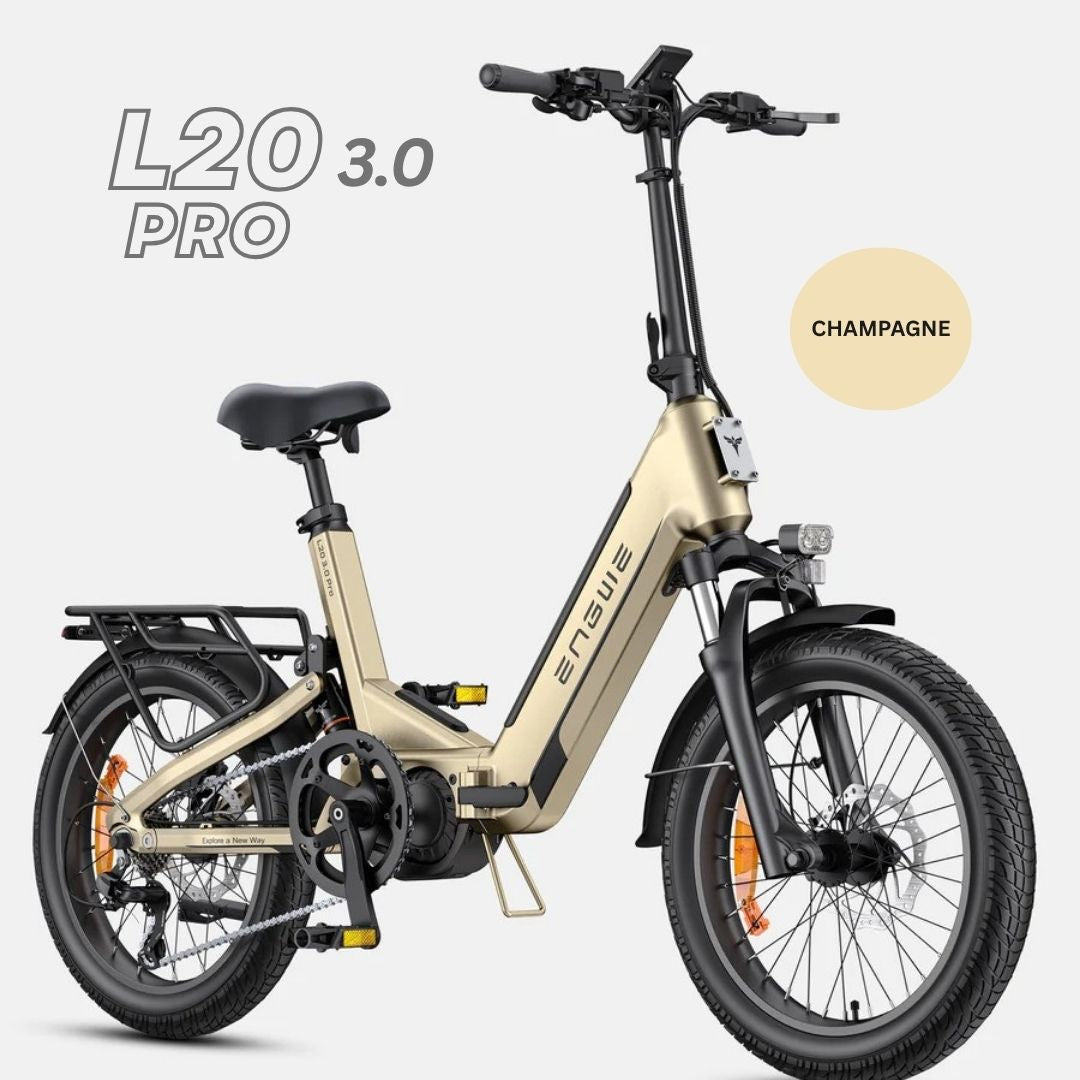

L20 3.0 PRO
| General Info | |
| Model | L20 3.0 Pro |
| Max Load Capacity | 150kg (330 lbs) |
| Ride Height | 5'1" - 6'3" (155cm - 190cm) |
| Certification | CE (EN15194) |
| Pedal Assist | 5 Levels |
| Fold | Yes |
| Lab Tested Range | 160 km(Fully Charged) |
| Real-World Range | 140 km(PAS 1) 110 km(PAS 3) 96 km(PAS 5) |
| Waterproof Ratings | IPX7(Waterproof Wiring) IPX6(Display & Lights) IPX5(Motor & Controller) IPX4(Battery Box) |
| Terrain | Tarmac Roads & Bicycle Routes Gravel-Paved Paths Sandy Beaches & Grass Country Roads & Paved Trails |
| Bike Weight | 32.8 kg(72.3 lbs) |
| Gross Weight | Approx. 42kg(92.6 lbs) |
| Frameset | |
| Frame Material | 6061 Aluminum Alloy, Internal Battery, Step-Through Design |
| Frame Style | Compact, Full Suspension |
| Fork | Hydraulic, Adjustable Lockout, One-Piece Die-Cast Aluminum |
| Rear Suspension | 30mm Travel |
| Wheel Set | |
| Tires | 20" × 3.0" Urban Hybrid Tires |
| Puncture Protection | 3mm Anti-Puncture Layer |
| Wheels | 20-inch, 12-gauge Spokes, 36-hole, Double-Wall Aluminum, Black |
| E-Bike System | |
| Motor | Mivice X700 Mid-Drive, 48V |
| Max Torque | 100Nm |
| IOT | ENGWE IOT Module with GPS, 4G & Bluetooth |
| Assist System | Torque Sensor |
| Battery | 48V 15Ah (720Wh), Samsung 21700 Cells with BMS |
| Display | 3.5" LCD Color Display, ENGWE-Designed, Mid-Position |
| ENGWE App | App Control Available |
| Charger | 54.6V 8A Output |
| Front Light | 30 Lux with Integrated E-Horn |
| Rear Light | Automatically brightens When Braking or Shaking |
| Brakes | |
| Brake Type | Hydraulic, Dual-Piston |
| Disc Rotor | 180mm Front & Rear |
| Drivetrain | |
| Chain | KMC E8S Anti-Rust, 112 Links |
| Chainring | 48T |
| Crank | 170mm |
| Rear Derailleur | Shimano Tourney RD-TY300, 7-Speed |
| Shifter | Shimano SL-M315-7R |
| Cassette | 7-Speed, 14T-28T |
| Pedals | Boron Steel, Non-Foldable |
| Cockpit | |
| Saddle | ENGWE Soft Saddle |
| Seat Post | 10-Level Adjustable |
| Handlebars | 680mm Width |
| Stem | Foldable |
| Seat Clamp | Quick-Release |
SIZE :
L20 3.0 BOOST
| Ride Height | 5'1" - 6'3" (155cm - 190cm) |
| Max Load Capacity | 150kg (330 lbs) |
| Package Dimensions | 140*27*64 cm |
| A-Handlebar Height | 110.2cm |
| B-Total Length | 168.0cm |
| C-Reach | 47.2cm |
| D-Standover Height | 38.0cm |
| E-WheelBase | 112.5cm |
| F-Minum saddle Height | 82.0cm |
| G-Maximum saddle Height | 102.0cm |
Please note: There may be a difference of 0~5 cm between measured and actual data.
|

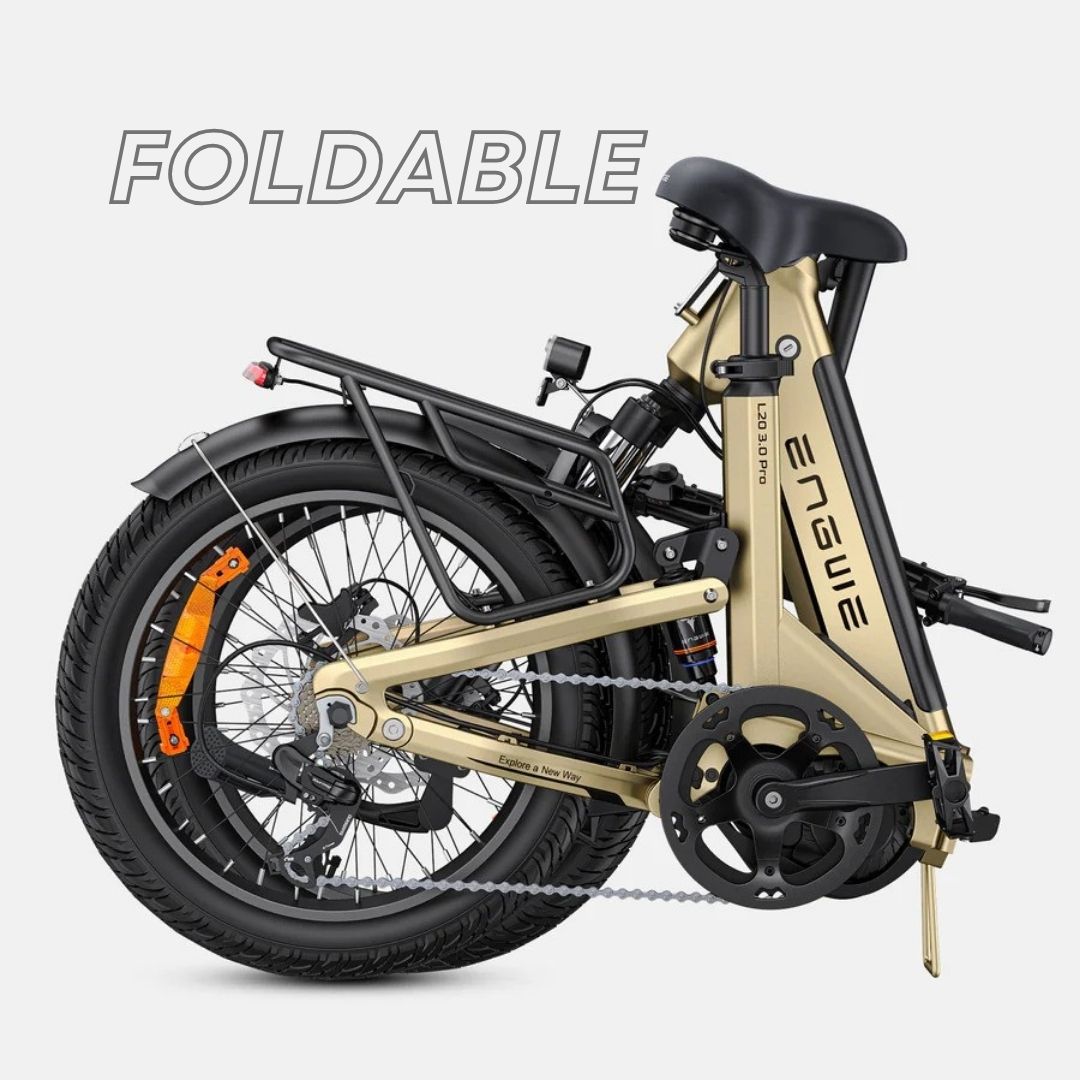

Folded Size |
100*51*75 cm |
| A--Height | 75 cm |
| B--Length | 100 cm |
| C--Width | 51 cm |
Please note: There may be a difference of 0~5 cm between measured and actual data.

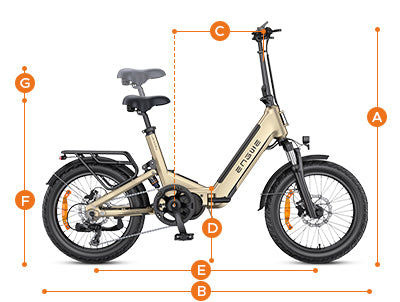

L20 3.0 PRO
| Ride Height | 5'1" - 6'3" (155cm - 190cm) |
| Max Load Capacity | 150kg (330 lbs) |
| Package Dimensions | 144*27*64 cm |
| A-Handlebar Height | 110.2cm |
| B-Total Length | 172.0cm |
| C-Reach | 51.2cm |
| D-Standover Height | 38.0cm |
| E-WheelBase | 116.5cm |
| F-Minum saddle Height | 82.0cm |
| G-Maximum saddle Height | 102.0cm |
Please note: There may be a difference of 0~5 cm between measured and actual data.
|

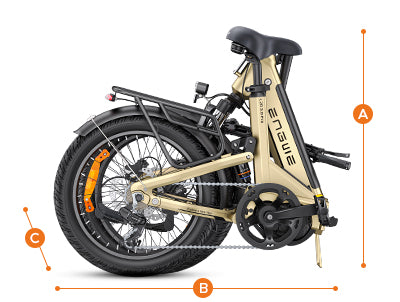

Folded Size |
102*53*78 cm |
| A-Height | 78 cm |
| B-Length | 102 cm |
| C-Width | 53 cm |
Please note: There may be a difference of 0~5 cm between measured and actual data.
Whats In The Box?
- L20 3.0 (Pro or Boost) E-Bike : 1 Unit
- Battery 48V 15Ah Samsung Lithium-Ion : 1 Unit
- Charger54.6V 8A : 1 Unit
- Pedals : 2 Units (1 Set)
- Front & Rear Fenders : 1 Unit
- Rear Rack : 1 Unit
- Bike Kickstand : 1 Unit
- Assembly Tools : 1 Unit
- User Manual : 1 Unit
Please note: The product you receive is based on the option you selected to order.
